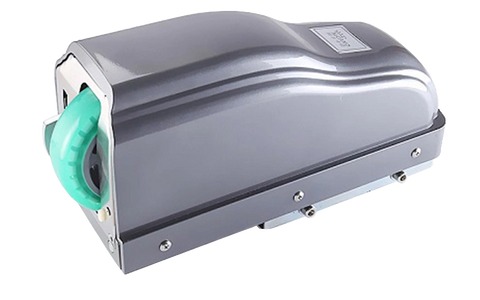

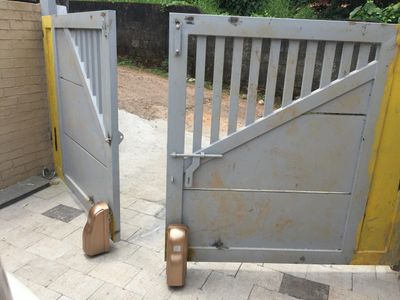

A Complete Range for All your Residential and Commercial applications. Our ER series Roller type Swing Gate opener operates with gate up to 5m wide and 1200kg per leaf weight and designed to work even in case of intense usage and demanding environmental conditions.
It is highly reliable, cost effective, and maintenance free
Lower energy consumption, more convenience and scope for design and lower installation costs. Our bespoke ER Series Roller Type Operator are the ideal solution for your modernisation or new-build Gate
ER Series Roller type operator are smooth, quiet and easy to operate. They provide you with numerous options to make things more convenient for you – such as radio-remote operation. This gives you all the functions in the palm of your hand, Open ,Stop , Close And Single leaf opening, and compatible with auto-identification system: Linked with camera, card reader, etc., the opener can jointly achieve the purpose of safety and anti-theft, entry or exit
Input Voltage: AC220V/110V
Working Voltage: DC 24V
Ambient Temperature: -50℃ ~+50℃
Rating Power: 115W * 2
Gate Width (per wing): ≤6M
Gate Weight (per wing): ≤600kgs
Regular Components: 2 motors, 1 panel, 2 remote controllers
Optional parts: IR sensor, storage battery, visual doorbell, card reader, fingerprint reader
Weight (kg): 23
Dimension (cm): 42*32*31
1. open up or close up in sequence
2. Automatically stopping function against extra resistance
3. Infrared protection interface
4. back-up power supply interface
5. operating time limit protection
6. optional operation mode for single or dual wing
7. adjustable interval setting in sequent close-up
8 adjustable operating time limit setting
9. automatically stopping and running reversely against excessive resistance during closing-up
10. interface for card reader and underground detector
11. adjustable time setting for automatic close-up function
1. Easier to drive the gate: The motor is mounted on the far end from the hinge point.
2. Special sliding groove: This enables the tolerance to the unevenness of road surface up to
90mm, maximum tolerance up to 300mm.
3. Unlimited opening angle: As far as the opener is concerned, the opening angle can be
greater than 180°.
4. Automatic locking unit: This unit combines the closing and the locking actions.
5. Optional manual operation: At power cut, the operation mode can be easier switched to
manual with a key.
6. Convenient installation: Can be mounted to any gate regardless of the condition of gate
posts or gate itself.
